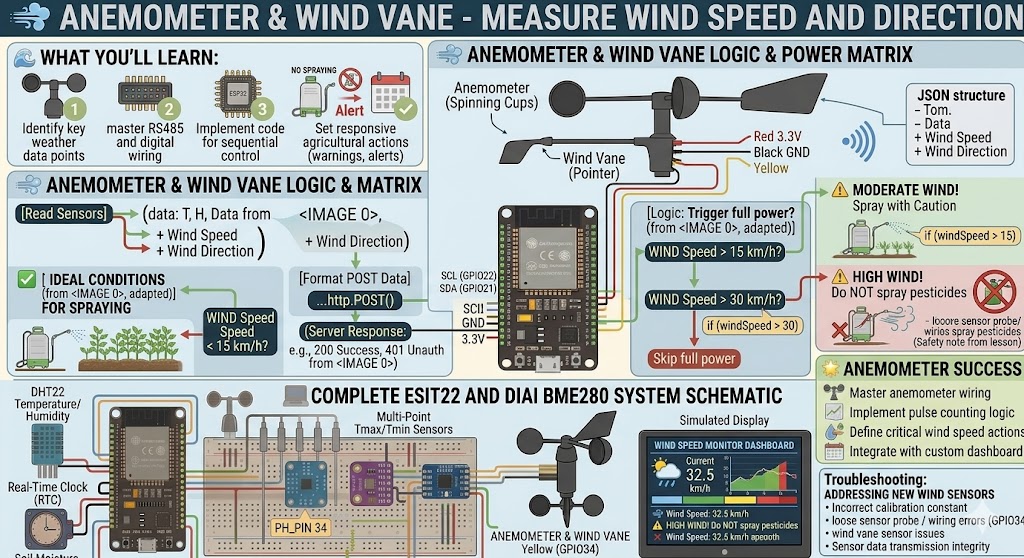

💨 Anemometer and Wind Vane - Measure Wind Speed and Direction

💨 What You'll Learn:

📡 Measure wind speed using an anemometer (reed switch type)
🧭 Optional: Add wind vane for direction (8 directions)
🚫 Know when it's safe to spray pesticides (wind < 15 km/h)
🌾 Protect crops from wind damage

🔌 Anemometer Wiring

Anemometer (Wind Speed)          ESP32
═══════════════════════          ════════
Red (VCC)              ─────►    3.3V
Black (GND)            ─────►    GND
Yellow (Signal)        ─────►    GPIO34 (interrupt pin)

⚠️ Add 10kΩ pull-up resistor between VCC and Signal if not built-in

📖 Wind Speed Code

#define WIND_PIN 34

volatile int pulseCount = 0;
float windSpeed = 0;
unsigned long lastCalc = 0;

void IRAM_ATTR pulseCounter() {
    pulseCount++;
}

void setup() {
    Serial.begin(115200);
    pinMode(WIND_PIN, INPUT_PULLUP);
    attachInterrupt(digitalPinToInterrupt(WIND_PIN), pulseCounter, FALLING);
}

void loop() {
    if (millis() - lastCalc >= 5000) {
        // Calculate km/h (calibrate factor for your anemometer)
        windSpeed = pulseCount * 0.34;

        Serial.printf("💨 Wind: %.1f km/h\n", windSpeed);

        if (windSpeed > 30) {
            Serial.println("   🚫 DO NOT spray - extreme wind");
        } else if (windSpeed > 15) {
            Serial.println("   ⚠️ Spray with caution - drift risk");
        } else if (windSpeed > 5) {
            Serial.println("   ✅ Safe to spray - light breeze");
        } else {
            Serial.println("   ✅ Ideal conditions - calm");
        }

        pulseCount = 0;
        lastCalc = millis();
    }
    delay(100);
}

🧭 Optional: Wind Vane for Direction (Analog)

#define WIND_DIR_PIN 35

const char* directions[] = {"N", "NE", "E", "SE", "S", "SW", "W", "NW"};
const int thresholds[] = {500, 1000, 1500, 2000, 2500, 3000, 3500, 4000};

String getDirection() {
    int val = analogRead(WIND_DIR_PIN);
    for (int i = 0; i < 8; i++) {
        if (val < thresholds[i]) return directions[i];
    }
    return "N";
}

void loop() {
    String dir = getDirection();
    Serial.printf("🧭 Wind direction: %s\n", dir.c_str());
}

💡 Calibrate Your Anemometer:

Each anemometer has a unique pulse factor
Default: 0.34 km/h per pulse/sec (many Chinese sensors)
To calibrate: Hold anemometer out car window at known speed, count pulses
Factor = Known speed ÷ Pulses per second

⚠️ Spraying Safety Rules:

❌ Never spray when wind > 15 km/h (chemical drift)
✅ Best spraying times: Early morning (5-8 AM) or evening (6-9 PM)
🌬️ Spray downwind, walk away from sensitive areas
📏 Use coarse droplets in windy conditions (less drift)

🎯 Quick Reference:

💨 Wind < 5 km/h: ✅ Ideal for spraying
💨 Wind 5-15 km/h: ⚠️ Spray with caution
💨 Wind > 15 km/h: 🚫 DO NOT spray
🧭 Wind direction helps avoid drift onto neighbors

💡 Key Takeaways:

Apply these concepts directly to your farm or project.
Take notes on important details for the quiz.
Use the button below to track your progress.
