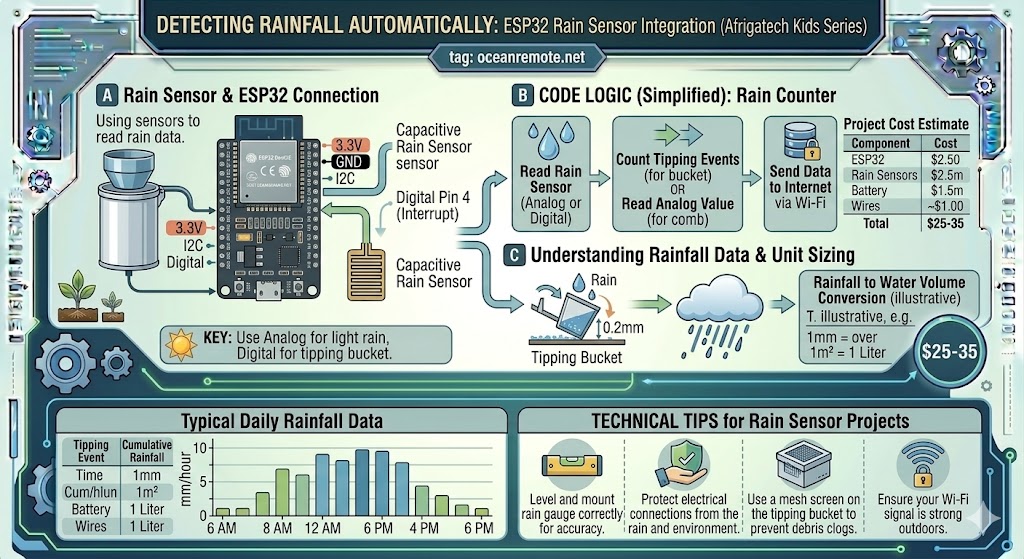

🌧️ Rain Sensors - Automatic Rain Detection for Smart Irrigation

☔ What You'll Learn:

💧 Detect rainfall automatically to pause irrigation
📊 Measure rain intensity (light vs heavy rain)
💰 Save water by not irrigating during/after rain
🔌 Wire digital and analog outputs correctly

Rain sensors detect rainfall and can automatically pause irrigation - saving water, preventing over-watering, and protecting your crops from root rot. A $3 sensor can save thousands of liters of water annually!

🔌 Rain Sensor Wiring (FC-37 / YL-83)

═══════════════════════════════════════════════════════════════════════════════
                    RAIN SENSOR (FC-37) TO ESP32
═══════════════════════════════════════════════════════════════════════════════

    Rain Sensor Module                ESP32
    ┌─────────────────┐               ┌─────────┐
    │ VCC (2-5V)      │ ───────────► │ 3.3V    │
    │ GND             │ ───────────► │ GND     │
    │ DO (Digital Out)│ ───────────► │ GPIO16  │  (LOW = rain, HIGH = dry)
    │ AO (Analog Out) │ ───────────► │ GPIO32  │  (0-4095, lower = heavier rain)
    └─────────────────┘               └─────────┘

    Adjust potentiometer on module to set digital threshold!
    - Turn clockwise = more sensitive (triggers with less water)
    - Turn counter-clockwise = less sensitive

═══════════════════════════════════════════════════════════════════════════════

📖 Complete Rain Detection Code

#define RAIN_DIGITAL 16
#define RAIN_ANALOG 32
#define PUMP_RELAY 5

void setup() {
    Serial.begin(115200);
    pinMode(RAIN_DIGITAL, INPUT);
    pinMode(RAIN_ANALOG, INPUT);
    pinMode(PUMP_RELAY, OUTPUT);
    digitalWrite(PUMP_RELAY, HIGH);  // Pump OFF initially

    Serial.println("☔ Rain Monitor Started");
}

void loop() {
    int rainDigital = digitalRead(RAIN_DIGITAL);
    int rainAnalog = analogRead(RAIN_ANALOG);

    Serial.println("━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━");

    if (rainDigital == LOW) {  // Rain detected (active LOW)
        Serial.println("🌧️ RAIN DETECTED!");
        Serial.printf("   Analog value: %d (0-wet, 4095-dry)\n", rainAnalog);

        // Determine rain intensity
        if (rainAnalog < 500) {
            Serial.println("   💧 Heavy rain - Skip irrigation for 24 hours");
        } else if (rainAnalog < 1500) {
            Serial.println("   💧 Moderate rain - Skip irrigation for 12 hours");
        } else if (rainAnalog < 3000) {
            Serial.println("   💧 Light rain - Skip irrigation for 6 hours");
        }

        // Disable pump
        digitalWrite(PUMP_RELAY, HIGH);
        Serial.println("   🚫 Pump DISABLED (rain detected)");

    } else {
        Serial.println("☀️ No rain detected");
        Serial.printf("   Analog value: %d (dry)\n", rainAnalog);

        // Normal irrigation logic here
        // digitalWrite(PUMP_RELAY, LOW); // Enable pump if soil is dry
        Serial.println("   ✅ Pump enabled based on soil moisture");
    }

    Serial.println("━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━\n");

    delay(60000);  // Check every minute
}

💡 Installation Tips:

Location: Mount in open area - not under trees or building overhangs
Angle: Install at slight angle (10-15°) to help water run off the sensor
Height: Mount at 1-2 meters above ground to avoid splashing
Cleaning: Clean sensor surface every few months - dirt reduces sensitivity
Corrosion: Use gold-plated sensor for longer life in humid climates

⚠️ Common Issues & Solutions:

Sensor always says "Raining": Adjust potentiometer (turn counter-clockwise)

Sensor never detects rain: Turn potentiometer clockwise for more sensitivity

False readings after rain: Sensor needs drying time - tilt it to help water run off

Corrosion after months: Use AC voltage (not DC) or replace with gold-plated sensor

Digital pin stays HIGH: Check pull-up resistor (enable INPUT_PULLUP)

📖 Case Study - Rain Sensor Saves 30% Water:
A vegetable farm in Uganda installed a rain sensor connected to their irrigation system:

Problem: Automatic irrigation watered even during/after rain

Solution: Rain sensor disables pump when rain detected

Result: 30% water saved during rainy season

Savings: $50/month + healthier crops (no over-watering)

"The rain sensor paid for itself in 2 months. Now my plants don't get over-watered when it rains." - Farmer, Uganda

🎉 Key Takeaways:

✅ Digital output (LOW = rain) for simple ON/OFF detection

✅ Analog output (0-4095) for rain intensity measurement

✅ Adjust potentiometer to set sensitivity threshold

✅ Always disable irrigation during/after rain to save water

✅ Clean sensor regularly and mount at slight angle
