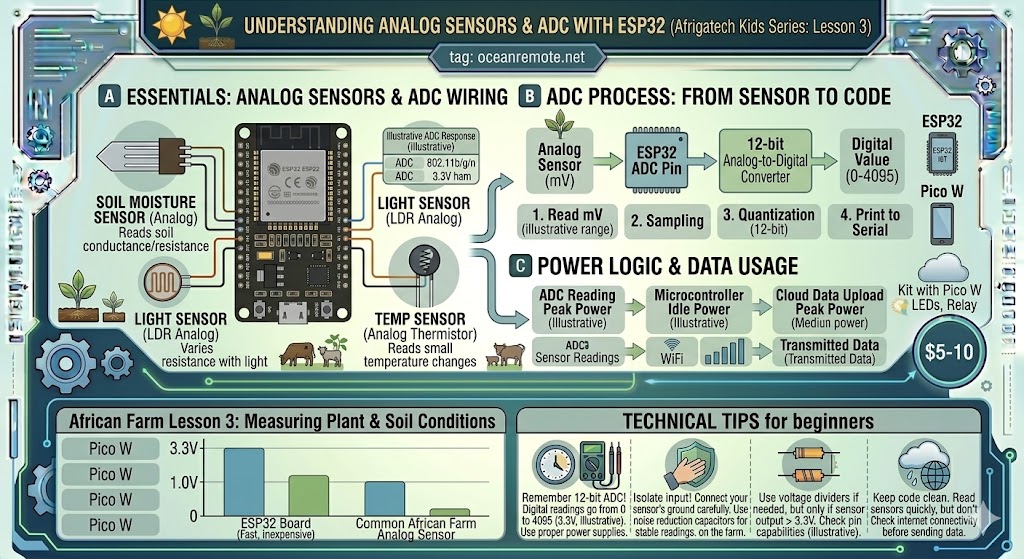

Understanding Analog Sensors and ADC

📊 Understanding Analog Sensors and ADC on ESP32

📊 What You'll Learn:

🔌 Understand how analog sensors work with ESP32
📈 Learn ADC (Analog-to-Digital Converter) basics
🌾 Connect soil moisture, light, and temperature sensors
⚡ Know which GPIO pins support analog reading

Analog sensors output a continuous voltage that the ESP32 can read to measure physical values like soil moisture, light intensity, or temperature.

🔧 What is ADC?

Converts analog voltage (0-3.3V) to digital value (0-4095)
ESP32 has 18 ADC channels on GPIO32-39 ONLY
12-bit resolution = 4096 discrete levels
Formula: Voltage = (analogRead(pin) * 3.3) / 4095

🌱 Common Agricultural Analog Sensors

Sensor	Measures	Output	Cost
Soil Moisture (Capacitive)	Water content	0-3.3V	$8-12
NTC Thermometer	Temperature	Variable resistance	$1-2
LDR (Light Sensor)	Light intensity	Variable resistance	$0.50
pH Sensor	Soil acidity	0-3.3V	$10-20
Rain Sensor	Rain detection	0-3.3V	$3-5

📖 Basic Analog Reading Code

const int analogPin = 34;  // ONLY GPIO32-39 work!
int rawValue = 0;
float voltage = 0;

void setup() {
    Serial.begin(115200);
    Serial.println("ADC Monitor Started");
}

void loop() {
    rawValue = analogRead(analogPin);
    voltage = rawValue * (3.3 / 4095.0);

    Serial.println("━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━");
    Serial.printf("📊 Raw ADC Value: %d (0-4095)\n", rawValue);
    Serial.printf("⚡ Voltage: %.2fV (0-3.3V)\n", voltage);
    Serial.printf("📈 Percentage: %.1f%%\n", (rawValue / 4095.0) * 100);
    Serial.println("━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━\n");

    delay(1000);
}

💡 ADC Pins Reference:

ADC1: GPIO32, GPIO33, GPIO34, GPIO35, GPIO36, GPIO39
ADC2: GPIO4, GPIO0, GPIO2, GPIO15, GPIO13, GPIO12, GPIO14, GPIO27, GPIO25, GPIO26
⚠️ ADC2 pins are used by WiFi - use ADC1 for reliable readings!

⚠️ CRITICAL: ESP32 ADC Limitations

Only GPIO32, 33, 34, 35, 36, 39 are reliable for analog reading
GPIO36 and GPIO39 are input-only - cannot be used as outputs
ADC is non-linear at extreme ends - most accurate from 10-90% range
Use moving average filter for stable readings: average 5-10 samples

🎉 Key Takeaways:

✅ ESP32 ADC = 12-bit resolution (0-4095, 0-3.3V)
✅ Use ADC1 pins (GPIO32-39) for reliable readings
✅ Formula: Voltage = (analogRead(pin) × 3.3) ÷ 4095
✅ Always calibrate analog sensors (dry/wet values)
✅ Use map() and constrain() for real-world values

💡 Key Takeaways:

Apply these concepts directly to your farm or project.
