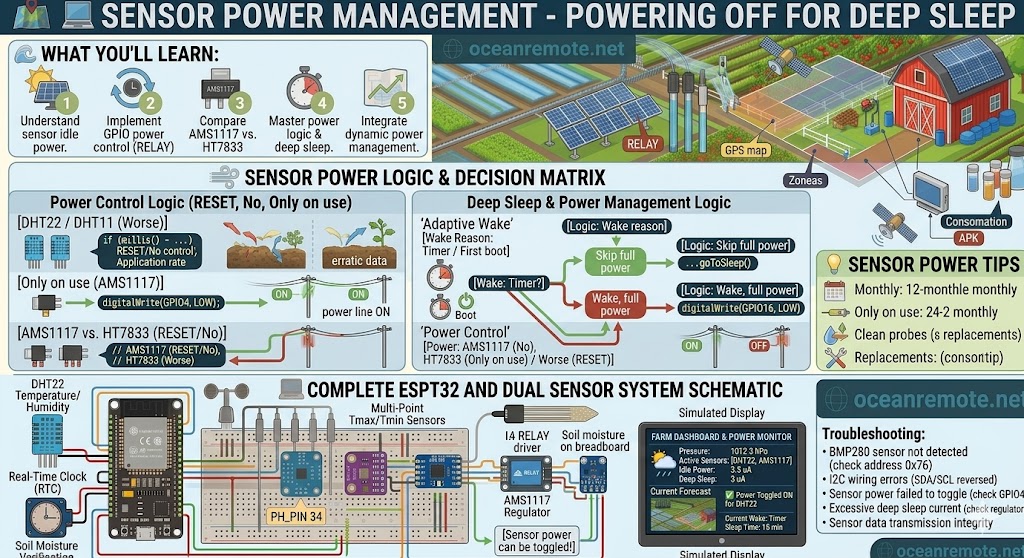

Sensor Power Management

🔌 Sensor Power Management - Turn Off Sensors When Not Reading

🔌 What You'll Learn:

🔋 Many sensors waste power while idle (even in deep sleep)
⚡ Use a MOSFET or transistor to cut power to sensors
📊 Reduce total power consumption by 80-95%
🔌 Wire sensors to GPIO pin for on/off control

📊 Sensor Power Consumption

Sensor	Active	Idle	Worse Case
DHT22	1.5mA	0.1mA	⚠️ OK
Soil Moisture (Capacitive)	5mA	0mA	✅ Good
BME280	0.1mA	0.1μA	✅ Excellent
NPK Sensor (RS485)	30mA	30mA	⚠️ ALWAYS ON!
Rain Sensor (LED type)	15mA	15mA	⚠️ ALWAYS ON!

💡 The Problem:

Some sensors (NPK, rain sensors with LED) consume power constantly, even in deep sleep. A 30mA sensor running 24/7 drains a 2600mAh battery in 3.5 days! Solution: Cut power completely.

🔌 MOSFET Power Switching Wiring

═══════════════════════════════════════════════════════════════════════════════
                    POWER SENSOR WITH GPIO PIN
═══════════════════════════════════════════════════════════════════════════════

    GPIO (ESP32) ────► 1kΩ resistor ────► MOSFET Gate (IRLZ44N)
    3.3V power supply ──────────────────► MOSFET Source
    Sensor VCC ──────────────────────────► MOSFET Drain
    Sensor GND ──────────────────────────► GND (shared)

    MOSFET options: IRLZ44N, AO3400, 2N7000 (logic-level, 3.3V compatible)

    ESP32 GPIO = HIGH (3.3V) → MOSFET ON → Sensor powered
    ESP32 GPIO = LOW (0V)    → MOSFET OFF → Sensor completely OFF

═══════════════════════════════════════════════════════════════════════════════
                    SIMPLER: POWER SENSOR DIRECTLY FROM GPIO
═══════════════════════════════════════════════════════════════════════════════

    ⚠️ Only for low-power sensors (< 20mA)

    ESP32 GPIO ──────────────────────────► Sensor VCC
    ESP32 GND ───────────────────────────► Sensor GND

    pinMode(GPIO, OUTPUT);
    digitalWrite(GPIO, HIGH);  // Power ON sensor
    delay(100);                // Wait for sensor to stabilize
    read sensor...
    digitalWrite(GPIO, LOW);   // Power OFF sensor

📖 Complete Power Management Code

#define NPK_POWER 25     // MOSFET control pin
#define NPK_RX 16
#define NPK_TX 17

void setup() {
    pinMode(NPK_POWER, OUTPUT);
    digitalWrite(NPK_POWER, LOW);  // Start with sensor OFF
}

void readNPK() {
    // Step 1: Power ON sensor
    digitalWrite(NPK_POWER, HIGH);
    delay(200);  // Wait for sensor to boot (critical!)

    // Step 2: Read sensor
    int n, p, k;
    readNPKValues(n, p, k);  // Your reading code here

    // Step 3: Power OFF sensor
    digitalWrite(NPK_POWER, LOW);

    Serial.printf("NPK: %d, %d, %d\n", n, p, k);
}

// Power-saving version for DHT22 (using GPIO power)
#define DHT_POWER 26
DHT dht(27, DHT22);  // Data pin on 27

void readDHT() {
    digitalWrite(DHT_POWER, HIGH);
    delay(2000);  // DHT22 needs 2 seconds to stabilize

    float t = dht.readTemperature();
    float h = dht.readHumidity();

    digitalWrite(DHT_POWER, LOW);
    Serial.printf("T: %.1f, H: %.1f%%\n", t, h);
}

void loop() {
    readNPK();   // Sensor only powered for 0.5 seconds
    delay(60000);
}

⚠️ Important Notes:

Some sensors need 1-2 seconds to warm up before reading
ESP32 GPIO can supply max 40mA (use MOSFET for higher current)
Capacitive sensors (<10mA) can be powered directly from GPIO
NPK sensors (30mA+) MUST use external MOSFET or relay

📖 Case Study - Rain Sensor Power Fix:
A rain sensor with LED consumed 15mA continuously (3.6mAh/day). Battery lasted only 2 weeks.

✅ Fix: Connected sensor VCC to ESP32 GPIO via MOSFET

⏰ Power ON only for 100ms each reading (once per hour)

🔋 Result: Battery life increased from 2 weeks to 6+ months

🎯 Key Takeaways:

❌ NPK sensors, LED rain sensors waste power 24/7

✅ Use MOSFET or GPIO to power sensors only when reading

⚡ Low-power sensors (<20mA) can connect directly to GPIO

⏰ Always add delay after powering ON (sensor warm-up)

🔋 Power management = 10-50x longer battery life
