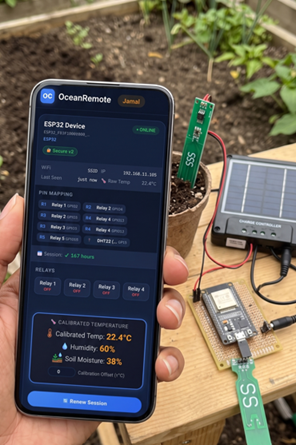

☀️ Complete Solar-Powered Soil Sensor Station

🌍 Why Solar-Powered IoT for African Farms?

Many farms in Africa lack reliable grid electricity. Solar-powered sensors solve this problem completely!

Challenge	Solar Solution
🔌 No grid electricity	Solar panel + battery = unlimited power
💰 High battery replacement cost	Solar charges battery, lasts years
📡 Remote location access	Deploy anywhere with GSM/WiFi coverage
🔋 Battery health unknown	Monitor voltage remotely to prevent failure

🛠️ Complete Components List

Component	Cost	Purpose
ESP32 (ESP32-S2 or S3 for lower power)	$6-10	Main controller
Capacitive Soil Moisture Sensor	$8-12	Measures soil water content
6V Solar Panel (2W minimum)	$10-15	Generates power from sun
18650 Li-ion Battery (2000-3000mAh)	$5-8	Stores energy for night/cloudy days
TP4056 Battery Charging Module	$2-3	Manages solar charging
Voltage Divider (2x 100kΩ resistors)	$0.20	Measures battery voltage safely

Total cost: ~$35-50 for a complete solar-powered sensor station!

🔌 Complete Wiring Diagram

╔═══════════════════════════════════════════════════════════════════════════╗
║                         SOLAR-POWERED SENSOR STATION                       ║
╠═══════════════════════════════════════════════════════════════════════════╣
║                                                                           ║
║   ☀️ SOLAR PANEL (6V)                                                     ║
║         │                                                                 ║
║         ├─ Positive (+) ──────────► TP4056 IN+ (B+ on module)            ║
║         └─ Negative (-) ──────────► TP4056 IN- (B- on module)            ║
║                                                                           ║
║   🔋 TP4056 CHARGING MODULE                                               ║
║         │                                                                 ║
║         ├─ BAT+ (18650 positive) ──► 18650 Battery (+)                   ║
║         ├─ BAT- (18650 negative) ──► 18650 Battery (-)                   ║
║         │                                                                 ║
║         ├─ OUT+ (4.2V regulated) ──► ESP32 VIN pin                       ║
║         └─ OUT- (GND) ──────────────► ESP32 GND pin                      ║
║                                                                           ║
║   🧠 ESP32                                                                ║
║         │                                                                 ║
║         ├─ GPIO32 (ADC) ──────────► Soil Moisture Sensor AO              ║
║         ├─ 3.3V ──────────────────► Soil Moisture Sensor VCC             ║
║         │                                                                 ║
║         ├─ GPIO34 (ADC) ──────────► Voltage Divider Center (Battery)     ║
║         │                                                                 ║
║         └─ GND ───────────────────► All sensor grounds                   ║
║                                                                           ║
║   🔋 VOLTAGE DIVIDER (for battery monitoring)                            ║
║         4.2V (Battery+)                                                  ║
║           │                                                              ║
║           ├─ 100kΩ ──────────────┬──► GPIO34 (ADC)                       ║
║           │                      │                                       ║
║           └─ 100kΩ ──────────────┴──► GND                                ║
║                                                                           ║
╚═══════════════════════════════════════════════════════════════════════════╝

📖 Complete Code with Line-by-Line Explanation

/*
 * ☀️ Complete Solar-Powered Soil Sensor Station
 *
 * Monitors soil moisture and battery voltage
 * Sleeps for 15 minutes between readings
 * Runs for months on a single charge (solar recharges!)
 *
 * Perfect for remote fields, greenhouses, and off-grid farms
 *
 * Author: OceanRemote Education
 * Version: 1.0
 */

#include        // For network connectivity
#include  // For sending data to cloud

// ========== WIFI CONFIGURATION ==========
const char* ssid = "YOUR_WIFI";          // Replace with your WiFi name
const char* password = "YOUR_PASSWORD";  // Replace with your WiFi password

// ========== OCEANREMOTE CONFIGURATION ==========
const char* token = "YOUR_OCEANREMOTE_TOKEN";  // Get this from OceanRemote dashboard

// ========== PIN DEFINITIONS ==========
#define SOIL_PIN 32       // GPIO32 - Soil moisture sensor (ADC)
#define BATTERY_PIN 34    // GPIO34 - Battery voltage monitoring (ADC)

// ========== SOIL MOISTURE CALIBRATION ==========
const int DRY_VALUE = 3800;   // Reading when sensor is in dry air
const int WET_VALUE = 1500;   // Reading when sensor is completely submerged in water

// ========== VOLTAGE DIVIDER SETUP ==========
// Using 100kΩ + 100kΩ divider = 2x reduction
// Actual battery voltage = ADC reading × 2
const float VOLTAGE_DIVIDER_RATIO = 2.0;

// ========== RTC DATA (Survives deep sleep) ==========
// This variable keeps its value even when ESP32 sleeps
RTC_DATA_ATTR int bootCount = 0;

void setup() {
    // ---------- STEP 1: INITIALIZE ----------
    Serial.begin(115200);
    bootCount++;  // Increment boot counter (tracks how many readings)

    Serial.println("========================================");
    Serial.print("🌱 Solar Soil Sensor v1.0 - Boot #");
    Serial.println(bootCount);
    Serial.println("========================================");

    // ---------- STEP 2: READ SOIL MOISTURE ----------
    int raw = analogRead(SOIL_PIN);
    Serial.print("📊 Raw soil reading: ");
    Serial.println(raw);

    // Convert raw ADC value (0-4095) to percentage (0-100%)
    int moisture = map(raw, DRY_VALUE, WET_VALUE, 0, 100);

    // Keep value within 0-100% range
    moisture = constrain(moisture, 0, 100);

    Serial.print("💧 Soil moisture: ");
    Serial.print(moisture);
    Serial.println("%");

    // ---------- STEP 3: READ BATTERY VOLTAGE ----------
    int batteryRaw = analogRead(BATTERY_PIN);
    Serial.print("🔋 Raw battery reading: ");
    Serial.println(batteryRaw);

    // Convert ADC reading to voltage (3.3V reference / 4095 steps)
    float voltage = batteryRaw * (3.3 / 4095.0);

    // Apply voltage divider factor (2.0x) to get actual battery voltage
    float batteryVoltage = voltage * VOLTAGE_DIVIDER_RATIO;

    Serial.print("🔋 Battery voltage: ");
    Serial.print(batteryVoltage);
    Serial.println("V");

    // ---------- STEP 4: BATTERY HEALTH CHECK ----------
    if (batteryVoltage < 3.3) {
        Serial.println("⚠️ BATTERY LOW! Voltage below 3.3V - Replace or recharge soon!");
    } else if (batteryVoltage < 3.5) {
        Serial.println("🟡 Battery medium - Consider recharging soon");
    } else if (batteryVoltage > 4.1) {
        Serial.println("✅ Battery fully charged!");
    } else {
        Serial.println("✅ Battery healthy");
    }

    // ---------- STEP 5: IRRIGATION RECOMMENDATION ----------
    if (moisture < 30) {
        Serial.println("⚠️ SOIL DRY! Time to water your crops!");
    } else if (moisture < 50) {
        Serial.println("🟡 Soil is drying - Monitor closely");
    } else if (moisture > 80) {
        Serial.println("✅ Soil wet - No watering needed");
    } else {
        Serial.println("✅ Soil moisture adequate");
    }

    // ---------- STEP 6: CONNECT TO WIFI (with timeout) ----------
    Serial.print("📡 Connecting to WiFi");
    WiFi.begin(ssid, password);

    int attempts = 0;
    while (WiFi.status() != WL_CONNECTED && attempts < 20) {
        delay(200);
        Serial.print(".");
        attempts++;
    }

    if (WiFi.status() == WL_CONNECTED) {
        Serial.println("\n✅ WiFi connected!");
        Serial.print("📶 IP address: ");
        Serial.println(WiFi.localIP());

        // ---------- STEP 7: SEND DATA TO OCEANREMOTE ----------
        HTTPClient http;
        http.begin("https://api.oceanremote.net/device/state");
        http.addHeader("Content-Type", "application/x-www-form-urlencoded");

        // Build the data string
        String data = "token=" + String(token);
        data += "&soil_moisture=" + String(moisture);
        data += "&battery_voltage=" + String(batteryVoltage);
        data += "&boot_count=" + String(bootCount);

        // Optional: Add irrigation recommendation
        if (moisture < 30) {
            data += "&status=needs_water";
        } else {
            data += "&status=ok";
        }

        Serial.println("📤 Sending data to OceanRemote...");
        Serial.println(data);

        int httpCode = http.POST(data);

        if (httpCode > 0) {
            Serial.print("✅ Data sent! HTTP response: ");
            Serial.println(httpCode);
        } else {
            Serial.print("❌ Failed to send data. Error: ");
            Serial.println(httpCode);
        }

        http.end();  // Close connection

        // Disconnect WiFi to save power
        WiFi.disconnect(true);
        WiFi.mode(WIFI_OFF);
        Serial.println("📡 WiFi disconnected to save power");

    } else {
        Serial.println("\n❌ WiFi connection failed! Skipping data send.");
        Serial.println("   (Will retry on next wake-up)");
    }

    // ---------- STEP 8: CALCULATE NEXT WAKE-UP TIME ----------
    // Get current time for logging
    unsigned long currentTime = millis() / 1000;  // seconds since boot

    Serial.println("========================================");
    Serial.println("💤 Entering deep sleep mode...");
    Serial.print("   This sensor will wake up in 15 minutes (");
    Serial.print(15 * 60);
    Serial.println(" seconds)");
    Serial.println("========================================\n");

    // ---------- STEP 9: DEEP SLEEP (15 MINUTES) ----------
    // Sleep for 15 minutes (15 × 60 × 1,000,000 microseconds)
    esp_sleep_enable_timer_wakeup(15 * 60 * 1000000ULL);

    // Go to sleep
    esp_deep_sleep_start();
}

void loop() {
    // This function never runs due to deep sleep
    // The ESP32 wakes up, runs setup(), then sleeps again
}


📊 Code Breakdown: Understanding Each Critical Section

💾 1. RTC_DATA_ATTR - Memory That Survives Sleep

RTC_DATA_ATTR int bootCount = 0;

• What it does: Stores variables in RTC (Real-Time Clock) memory
• Why important: Regular variables reset when ESP32 sleeps. RTC variables keep their value!
• Use case: Track how many times your sensor has reported data over days/weeks

🔋 2. Battery Voltage Measurement with Voltage Divider

int batteryRaw = analogRead(BATTERY_PIN);
float voltage = batteryRaw * (3.3 / 4095.0);
float batteryVoltage = voltage * 2.0;  // Because 100kΩ + 100kΩ divider

• Why voltage divider? ESP32 ADC can only read 0-3.3V. Battery is 3.7-4.2V (too high).
• How it works: Two 100kΩ resistors cut voltage in half, making it safe for ESP32
• Formula: Actual voltage = ADC reading × 2.0
• Battery levels: 4.2V = full, 3.7V = nominal, 3.3V = low battery warning

📡 3. WiFi Connection with Timeout (Prevents Lockups)

int attempts = 0;
while (WiFi.status() != WL_CONNECTED && attempts < 20) {
    delay(200);
    attempts++;
}

• Standard WiFi.begin() can loop forever if WiFi is down
• With timeout: Tries for 4 seconds (20 attempts × 200ms), then gives up
• Result: Sensor still sleeps even if WiFi fails. Retries next time!

💤 4. Power Optimization - WiFi Disconnect

WiFi.disconnect(true);
WiFi.mode(WIFI_OFF);

• WiFi.disconnect(true) - Disconnects from network, frees memory
• WiFi.mode(WIFI_OFF) - Completely turns off WiFi radio
• Power saving: Reduces current from ~70mA to ~10mA before deep sleep

📈 Battery Life & Solar Sizing Guide

Power Consumption Calculation

State	Current	Duration	Energy per Cycle
Sensor Reading	10mA	1 second	0.0028mAh
WiFi Connecting	120mA	4 seconds	0.133mAh
Data Transmission	150mA	2 seconds	0.083mAh
Deep Sleep	0.0025mA	14 minutes 53 sec	0.0006mAh
Total per 15 minutes	-	-	~0.22mAh

☀️ Solar Panel Sizing Formula

Solar Panel Wattage = (Daily Consumption) ÷ (Sun Hours) × 1.5

For our sensor:
Daily Consumption: 0.022Ah × 3.7V = 0.081Wh
Sun Hours (Africa average): 5 hours
Required Panel: 0.081Wh ÷ 5h × 1.5 = 0.024W

Recommend: 2W panel (80x overkill for cloudy days!)

🎯 Customization Options

Adjust Reading Interval

// 15 minutes (current)
esp_sleep_enable_timer_wakeup(15 * 60 * 1000000ULL);

// 1 hour (more battery saving)
esp_sleep_enable_timer_wakeup(60 * 60 * 1000000ULL);

// 5 minutes (more frequent updates)
esp_sleep_enable_timer_wakeup(5 * 60 * 1000000ULL);

Customize Soil Moisture Thresholds by Crop

// Tomatoes: Water below 50%
const int WATER_THRESHOLD = 50;

// Maize/Corn: Water below 40%
const int WATER_THRESHOLD = 40;

// Cacti/Succulents: Water below 20%
const int WATER_THRESHOLD = 20;

Add Multiple Sensors (Expandable)

#define SOIL_PIN_1 32
#define SOIL_PIN_2 33
#define SOIL_PIN_3 34

int moisture1 = map(analogRead(SOIL_PIN_1), DRY_VALUE, WET_VALUE, 0, 100);
int moisture2 = map(analogRead(SOIL_PIN_2), DRY_VALUE, WET_VALUE, 0, 100);
int moisture3 = map(analogRead(SOIL_PIN_3), DRY_VALUE, WET_VALUE, 0, 100);

🚀 Next Steps: Solar Sensor Enhancements

• Add temperature sensor (DS18B20): Monitor soil temperature for planting decisions
• Add LoRa module: Send data 10km+ without WiFi (perfect for remote fields)
• Add cellular module (SIM800L): Send data via SMS if no WiFi
• Add external antenna: Improve WiFi range to cover entire farm
• Deploy multiple sensors: Create a mesh network across your fields
• Add SD card logging: Backup data locally in case of network failure
