🔋 Deep Sleep - Complete Power Saving Guide

🔋 Why Deep Sleep Matters for African Agriculture

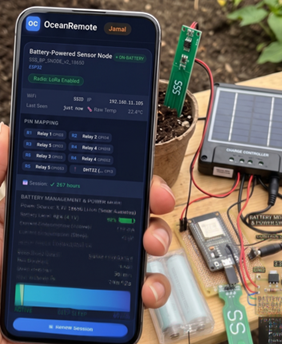

Solar-powered sensors in remote fields need to run for months without maintenance. Deep sleep makes this possible!

📖 ESP32 Deep Sleep with Timer (Most Common)

/*
 * ESP32 Deep Sleep with Timer Wake-Up
 * Perfect for weather stations, soil sensors, and data loggers
 *
 * Battery life: 2000mAh battery lasts 6-12 months!
 *
 * Components Required:
 * - ESP32 board
 * - Connect GPIO16 to RST pin (for wake-up!)
 */

#include

// ========== RTC DATA (Survives deep sleep) ==========
// Regular variables reset when ESP32 sleeps
// RTC_DATA_ATTR variables keep their value!
RTC_DATA_ATTR int bootCount = 0;
RTC_DATA_ATTR unsigned long totalWakeUps = 0;

// Optional: Store sensor readings across sleep
RTC_DATA_ATTR float lastTemperature = 0;
RTC_DATA_ATTR float lastHumidity = 0;

// ========== CONFIGURATION ==========
const unsigned long SLEEP_MINUTES = 15;  // Sleep duration in minutes

void print_wakeup_reason() {
    esp_sleep_wakeup_cause_t reason = esp_sleep_get_wakeup_cause();

    switch(reason) {
        case ESP_SLEEP_WAKEUP_TIMER:
            Serial.println("⏰ Wake-up caused by timer");
            break;
        case ESP_SLEEP_WAKEUP_EXT0:
            Serial.println("🔘 Wake-up caused by external pin (RTC_IO)");
            break;
        case ESP_SLEEP_WAKEUP_EXT1:
            Serial.println("🔘 Wake-up caused by external pin (RTC_CNTL)");
            break;
        case ESP_SLEEP_WAKEUP_TOUCHPAD:
            Serial.println("👆 Wake-up caused by touchpad");
            break;
        case ESP_SLEEP_WAKEUP_ULP:
            Serial.println("🧠 Wake-up caused by ULP program");
            break;
        default:
            Serial.printf("🔄 Wake-up caused by %d (other reason)\n", reason);
            break;
    }
}

void setup() {
    Serial.begin(115200);
    delay(1000);  // Give serial time to initialize

    // Increment boot counter
    bootCount++;
    totalWakeUps++;

    Serial.println("========================================");
    Serial.printf("🔋 ESP32 Deep Sleep Demo - Wake #%d\n", bootCount);
    Serial.println("========================================");

    // Print wake-up reason
    print_wakeup_reason();

    // ========== READ YOUR SENSORS HERE ==========
    // Example: Read soil moisture, temperature, humidity
    int soilMoisture = analogRead(32);
    float temperature = 25.5;  // Replace with actual sensor reading

    Serial.printf("📊 Soil moisture: %d\n", soilMoisture);
    Serial.printf("🌡️ Temperature: %.1f°C\n", temperature);

    // ========== SEND DATA TO OCEANREMOTE ==========
    // Connect to WiFi and send data
    // ... your data sending code here ...

    // ========== DEEP SLEEP CONFIGURATION ==========
    // Calculate sleep time in microseconds
    unsigned long sleepTimeUs = SLEEP_MINUTES * 60 * 1000000ULL;

    Serial.printf("💤 Going to deep sleep for %lu minutes\n", SLEEP_MINUTES);
    Serial.printf("   Sleep time: %lu microseconds\n", sleepTimeUs);
    Serial.printf("   Battery estimate: ~%d days\n", (int)((2000 * 24) / (0.0025 * 24 * 60 / 15)));
    Serial.println("========================================\n");

    // Enable timer wake-up
    esp_sleep_enable_timer_wakeup(sleepTimeUs);

    // Optional: Enable touch wake-up
    // touchSleepWakeUpEnable(T0, 40);  // Wake when touch pad value < 40

    // Optional: Enable external pin wake-up
    // esp_sleep_enable_ext0_wakeup(GPIO_NUM_33, 1);  // Wake when GPIO33 goes HIGH

    // Enter deep sleep
    esp_deep_sleep_start();

    // This code never executes
}

void loop() {
    // Empty - never reached due to deep sleep
}


ESP32: GPIO16 ──────────► RST pin
        (This allows the internal timer to reset the chip)

📖 ESP8266 Deep Sleep (Simpler!)

ESP8266 deep sleep doesn't require external wiring - it's built-in!

/*
 * ESP8266 Deep Sleep with Timer Wake-Up
 * No external wiring needed - works out of the box!
 *
 * Note: ESP8266 deep sleep consumes ~20μA (vs 2.5μA for ESP32)
 * Still lasts months on a battery!
 */

#include

// ESP8266 has limited RTC memory (512 bytes)
// Use it for critical data only
RTC_DATA_ATTR int bootCount = 0;

const unsigned long SLEEP_SECONDS = 300;  // 5 minutes (ESP8266 uses seconds)

void setup() {
    Serial.begin(115200);
    delay(1000);

    bootCount++;

    Serial.println("========================================");
    Serial.printf("🔋 ESP8266 Deep Sleep Demo - Wake #%d\n", bootCount);
    Serial.println("========================================");

    // ========== READ SENSORS ==========
    // ESP8266 has only one ADC pin (A0)
    int soilMoisture = analogRead(A0);
    Serial.printf("📊 Soil moisture: %d\n", soilMoisture);

    // ========== CONNECT TO WIFI AND SEND DATA ==========
    // ... your code here ...

    // ========== PREPARE FOR DEEP SLEEP ==========
    // Disable WiFi to save power before sleeping
    WiFi.disconnect(true);
    WiFi.mode(WIFI_OFF);

    Serial.printf("💤 Going to deep sleep for %lu seconds\n", SLEEP_SECONDS);
    Serial.printf("   Battery estimate: ~%d days (2000mAh)\n", (int)((2000 * 24) / (0.02 * 24 * 60 / 5)));
    Serial.println("========================================\n");

    // ESP8266 deep sleep (microseconds)
    // Note: Maximum sleep time is 4,294,967,295 microseconds (~71 minutes)
    ESP.deepSleep(SLEEP_SECONDS * 1000000);

    // Alternative with no wake-up (battery saving, needs reset)
    // ESP.deepSleep(0);
}

void loop() {}


🔘 External Wake-Up (Button / Sensor Trigger)

Wake the ESP32 when something interesting happens, not just on a timer!

/*
 * ESP32 External Wake-Up - Button or Sensor Trigger
 * Perfect for: Wake when motion detected, button pressed, or threshold exceeded
 */

#include

#define WAKE_UP_PIN GPIO_NUM_33  // GPIO33 - Connect button to this pin

// Button wiring: GPIO33 ──┬── 10kΩ ──► 3.3V
//                        └── Button ──► GND

RTC_DATA_ATTR int bootCount = 0;

void setup() {
    Serial.begin(115200);
    bootCount++;

    Serial.println("========================================");
    Serial.printf("🔘 ESP32 External Wake-Up Demo - Wake #%d\n", bootCount);
    Serial.println("========================================");

    // Check wake-up reason
    esp_sleep_wakeup_cause_t cause = esp_sleep_get_wakeup_cause();

    if (cause == ESP_SLEEP_WAKEUP_EXT0) {
        Serial.println("✅ Woke up by button press!");
        // Button was pressed - do something special
    } else {
        Serial.println("⏰ First boot or other wake reason");
    }

    // Read sensors, send data, etc.
    // ...

    // Configure external wake-up
    // Wake when WAKE_UP_PIN goes HIGH (1) or LOW (0)
    esp_sleep_enable_ext0_wakeup(WAKE_UP_PIN, 1);  // HIGH = wake

    Serial.println("💤 Going to deep sleep. Press button on GPIO33 to wake!");
    esp_deep_sleep_start();
}


📊 ESP32 Power Consumption Calculator

Use this formula to estimate battery life:

/*
 * Battery Life Calculator for ESP32 Deep Sleep
 *
 * Formula: Battery Life (days) = Battery Capacity (mAh) / Daily Consumption (mAh/day)
 *
 * Daily Consumption = (Wake Current × Wake Time + Sleep Current × Sleep Time) × Cycles per Day
 */

#include

RTC_DATA_ATTR int bootCount = 0;
const unsigned long LOOP_INTERVAL_SECONDS = 900;  // 15 minutes

// Power constants (measured in microamps)
const float WAKE_CURRENT_MA = 150.0;      // 150mA during operation
const float SLEEP_CURRENT_MA = 0.0025;    // 2.5μA during deep sleep
const float BATTERY_CAPACITY_MAH = 2000;  // 2000mAh battery

void calculateBatteryLife() {
    // Wake time in seconds (measure with millis())
    // For this example, we'll assume 3 seconds
    float wakeTimeSeconds = 3.0;
    float sleepTimeSeconds = LOOP_INTERVAL_SECONDS - wakeTimeSeconds;

    // Energy per cycle (mAh)
    float wakeEnergy = WAKE_CURRENT_MA * (wakeTimeSeconds / 3600.0);
    float sleepEnergy = SLEEP_CURRENT_MA * (sleepTimeSeconds / 3600.0);
    float totalEnergyPerCycle = wakeEnergy + sleepEnergy;

    // Cycles per day
    float cyclesPerDay = 86400.0 / LOOP_INTERVAL_SECONDS;

    // Daily consumption
    float dailyConsumption = totalEnergyPerCycle * cyclesPerDay;

    // Battery life in days
    float batteryLifeDays = BATTERY_CAPACITY_MAH / dailyConsumption;

    Serial.println("========================================");
    Serial.println("🔋 BATTERY LIFE CALCULATION");
    Serial.println("========================================");
    Serial.printf("Wake current: %.1fmA\n", WAKE_CURRENT_MA);
    Serial.printf("Sleep current: %.4fmA (%.1fuA)\n", SLEEP_CURRENT_MA, SLEEP_CURRENT_MA * 1000);
    Serial.printf("Wake time: %.1f seconds\n", wakeTimeSeconds);
    Serial.printf("Sleep interval: %d seconds (%d minutes)\n", LOOP_INTERVAL_SECONDS, LOOP_INTERVAL_SECONDS / 60);
    Serial.println("----------------------------------------");
    Serial.printf("Energy per cycle: %.6fmAh\n", totalEnergyPerCycle);
    Serial.printf("Cycles per day: %.1f\n", cyclesPerDay);
    Serial.printf("Daily consumption: %.3fmAh\n", dailyConsumption);
    Serial.println("----------------------------------------");
    Serial.printf("🔋 Battery life: %.0f DAYS (%.1f MONTHS)\n", batteryLifeDays, batteryLifeDays / 30);
    Serial.println("========================================");
}

void setup() {
    Serial.begin(115200);
    bootCount++;

    calculateBatteryLife();

    // Your sensor reading code...

    esp_sleep_enable_timer_wakeup(LOOP_INTERVAL_SECONDS * 1000000ULL);
    esp_deep_sleep_start();
}


📊 Sleep Mode Comparison Table

🔧 Troubleshooting Deep Sleep Issues

// ESP32
esp_sleep_enable_timer_wakeup(microseconds);
esp_sleep_enable_ext0_wakeup(pin, level);
esp_sleep_enable_touchpad_wakeup();
esp_deep_sleep_start();

// ESP8266
ESP.deepSleep(microseconds);
