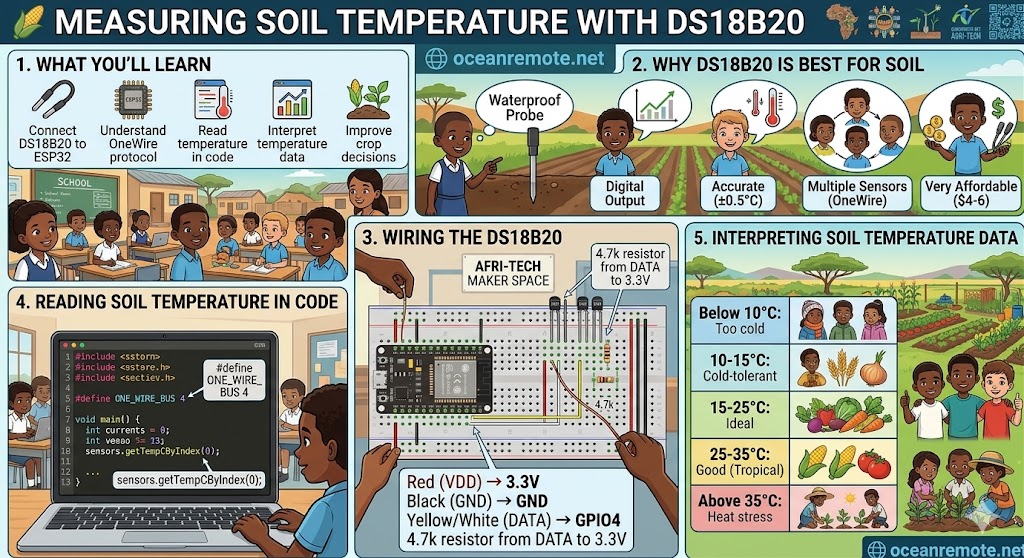

Practical Soil Temperature

🔌 Measuring Soil Temperature with DS18B20

🌡️ What You'll Learn:

🔌 Wire a waterproof DS18B20 temperature sensor for soil monitoring
📊 Read accurate soil temperature (±0.5°C) at root depth
🌱 Use soil temperature data to optimize planting and irrigation
💰 Prevent crop loss by avoiding planting in cold soil

🛠️ Why DS18B20 is Best for Soil

✅ Waterproof probe
Can be buried directly in soil — no special enclosure needed!
✅ Digital output
No calibration required — reads accurate temperature immediately
✅ Accurate to ±0.5°C
Range: -55°C to +125°C (works in all farming climates)
✅ Multiple sensors on one wire
One GPIO pin can read 10+ sensors (OneWire protocol)
✅ Very affordable
Only $4-6 per sensor — monitor multiple zones cheaply

💡 DS18B20 vs Other Soil Temperature Sensors:

DS18B20 ($5): Waterproof, digital, ±0.5°C accuracy — BEST FOR SOIL
LM35 ($3): Analog, NOT waterproof — needs enclosure, less accurate
Thermocouple ($10): Very wide range, but needs amplifier — overkill for soil
Our choice: DS18B20 is the perfect balance of price, accuracy, and durability

🔗 Wiring the DS18B20

DS18B20 Waterproof Sensor (colors may vary):
═══════════════════════════════════════════════════════════════
Red wire (VDD)     → ESP32 3.3V (or 5V for ESP8266)
Black wire (GND)   → ESP32 GND
Yellow/White (DATA)→ ESP32 GPIO4

⚠️ CRITICAL: 4.7kΩ pull-up resistor required!
   Connect between DATA (GPIO4) and 3.3V

Diagram:
       4.7kΩ
GPIO4 ──█/\/\/\█── 3.3V
   │
   └── DS18B20 DATA (yellow)

Multiple sensors: Connect all DATA wires to same GPIO4!

⚠️ CRITICAL: Pull-Up Resistor Required!

The DS18B20 WILL NOT WORK without a 4.7kΩ pull-up resistor between DATA and 3.3V. Some pre-built modules include this resistor, but the bare waterproof probe does NOT. Always add it!

📖 Reading Soil Temperature (Basic Code)

#include <OneWire.h>
#include <DallasTemperature.h>

#define ONE_WIRE_BUS 4

OneWire oneWire(ONE_WIRE_BUS);
DallasTemperature sensors(&oneWire);

void setup() {
    Serial.begin(115200);
    sensors.begin();
    Serial.println("🌡️ DS18B20 Soil Temperature Sensor Ready");
    Serial.println("========================================");
}

void loop() {
    sensors.requestTemperatures();
    float soilTemp = sensors.getTempCByIndex(0);

    if (soilTemp == -127.0) {
        Serial.println("❌ Sensor error! Check wiring.");
    } else {
        Serial.printf("🌡️ Soil Temperature: %.1f°C\n", soilTemp);

        if (soilTemp < 10) {
            Serial.println("⚠️ TOO COLD! Do not plant sensitive crops.");
        } else if (soilTemp > 35) {
            Serial.println("⚠️ TOO HOT! Increase irrigation, provide shade.");
        } else {
            Serial.println("✅ Soil temperature is within good range.");
        }
    }

    delay(60000);
}

📖 Advanced Code (Multiple Sensors)

#include <OneWire.h>
#include <DallasTemperature.h>

#define ONE_WIRE_BUS 4

OneWire oneWire(ONE_WIRE_BUS);
DallasTemperature sensors(&oneWire);
int sensorCount = 0;

void setup() {
    Serial.begin(115200);
    sensors.begin();
    sensorCount = sensors.getDeviceCount();
    Serial.printf("🔍 Found %d DS18B20 sensor(s)\n", sensorCount);
}

void loop() {
    sensors.requestTemperatures();

    for (int i = 0; i < sensorCount; i++) {
        float temp = sensors.getTempCByIndex(i);

        if (temp != -127.0) {
            Serial.printf("🌡️ Sensor %d: %.1f°C\n", i + 1, temp);

            if (temp < 12) {
                Serial.printf("   Zone %d: Too cold for germination\n", i + 1);
            } else if (temp > 32) {
                Serial.printf("   Zone %d: Heat stress — water more\n", i + 1);
            } else {
                Serial.printf("   Zone %d: Optimal temperature\n", i + 1);
            }
        }
    }

    delay(300000);
}

💡 Multiple Sensors on One Wire:

You can connect 10+ DS18B20 sensors to the same GPIO pin! Each sensor has a unique 64-bit address. Perfect for monitoring different depths or zones across your farm.

📊 Interpreting Soil Temperature Data

❄️ Below 10°C
→ Too cold for most crops — delay planting
🌱 Seeds won't germinate. Roots stop growing below 8°C.
🌿 10-15°C
→ Cold-tolerant crops only (wheat, onions, peas, lettuce)
🌱 Germination is slow but possible for cold-season crops.
✅ 15-25°C
→ Ideal for most vegetables (tomatoes, peppers, cucumbers)
🌱 Optimal root growth, nutrient uptake, and microbial activity.
🌞 25-35°C
→ Good for tropical crops (maize, sorghum, okra, eggplant)
🌱 Warm-season crops thrive, but monitor moisture closely.
🔥 Above 35°C
→ Heat stress — increase watering, provide shade, mulch heavily
🌱 Root death above 40°C. Immediate action required!

🌟 Using Soil Temperature for Planting Decisions:

// Add to your monitoring code
float soilTemp = sensors.getTempCByIndex(0);

if (soilTemp < 12 && month == 3) {  // March planting season
    Serial.println("⚠️ Soil too cold! Delay planting by 2 weeks.");
} else if (soilTemp > 18 && month == 3) {
    Serial.println("✅ Soil ready for planting tomatoes and peppers.");
}

if (soilTemp > 35) {
    Serial.println("⚠️ CRITICAL: Soil overheating! Water immediately.");
}

📖 Case Study — Soil Temperature Monitoring Saves Crop, Nigeria:

A tomato farmer in Kaduna used DS18B20 sensors to monitor soil temperature:

🌡️ Discovery: Soil temperature reached 42°C at 2pm (roots cooking!)
✅ Action: Added mulch and increased irrigation during peak heat
💧 Result: Saved entire crop from root death ($5,000 value)
💰 ROI: $6 sensor saved $5,000 crop in first season

"The sensor alerted me before my plants died. Now I mulch heavily and water during peak heat." — Farmer, Kaduna State

⚠️ Common Problems & Solutions:

Reading -127°C: Sensor not detected — check pull-up resistor and wiring
Reading 85°C: Power-on default — wait 1 second after sensor request
Intermittent readings: Loose connection or wire too long (>10m)
No sensors found: Wrong pin assignment or missing pull-up resistor
ESP8266 note: Use GPIO4 or GPIO5 (avoid GPIO16 for OneWire)

💡 Pro Tips for Accurate Soil Temperature:

📍 Bury at root depth: 10-15cm deep for most vegetables
🌳 Multiple locations: Use 3-5 sensors per acre for accuracy
🕐 Time of day: Check at sunrise (coolest) and 2pm (hottest)
🌾 Under mulch vs bare soil: Mulch keeps soil 5-10°C cooler
💧 Wet vs dry soil: Wet soil heats slower — water before heat waves

🎯 Key Takeaways:

✅ DS18B20 is the best soil temperature sensor: waterproof, digital, ±0.5°C, $4-6
✅ A 4.7kΩ pull-up resistor between DATA and 3.3V is REQUIRED
✅ One GPIO pin can read 10+ sensors — monitor multiple zones
✅ Ideal soil temperature for most vegetables: 15-25°C
✅ Below 10°C = too cold to plant. Above 35°C = heat stress risk
✅ A single $6 sensor can save $5,000+ by preventing crop loss
