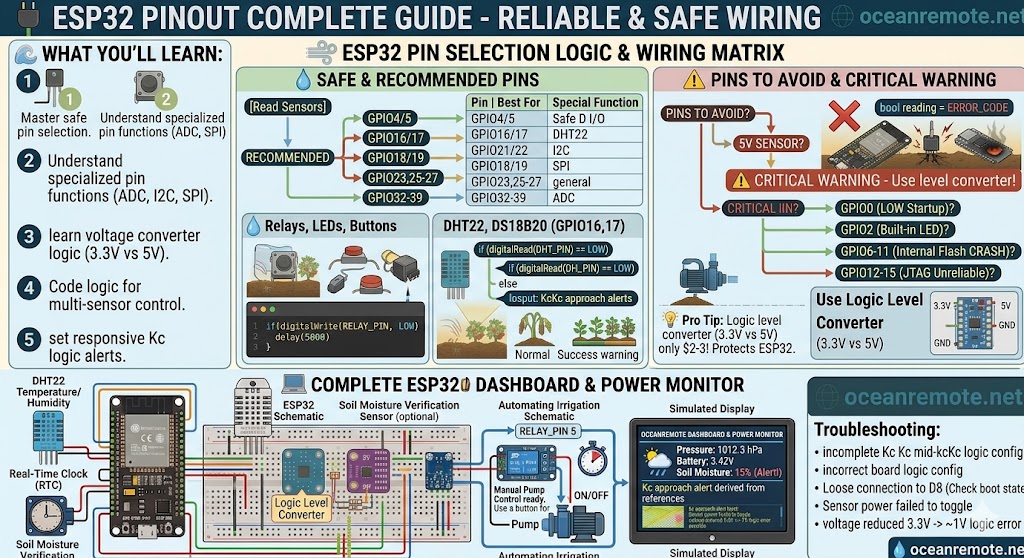

ESP32 Pinout Complete Guide

🔌 ESP32 Pinout Complete Guide - Safe Wiring for Your Farm Sensors

🔌 What You'll Learn:

📊 Know which pins are safe for sensors (and which to avoid)
⚡ Understand power pins: 3.3V (output), 5V/VIN (input)
⚠️ Learn the critical 3.3V logic rule (NEVER connect 5V!)
🔧 Complete wiring examples for common sensors

⚠️ CRITICAL WARNING - READ FIRST:

ESP32 pins are 3.3V logic ONLY - NEVER connect 5V sensors directly!
Using 5V will destroy your ESP32 permanently.
Use a logic level converter ($2-3) for 5V sensors.
Some boards have a 5V pin for INPUT only (never output 5V).

✅ Safe & Recommended Pins for Sensors

GPIO4, GPIO5: Best for relays, LEDs, buttons - safe digital I/O
GPIO16, GPIO17: DHT22, DS18B20 sensors - reliable digital I/O
GPIO21, GPIO22: I2C sensors (OLED, BMP280, BME280) - SDA(21), SCL(22)
GPIO18, GPIO19: SPI devices (LoRa, SD card) - SCLK(18), MISO(19)
GPIO23, GPIO25, GPIO26, GPIO27: General purpose I/O - safe for most uses
GPIO32, GPIO33, GPIO34, GPIO35, GPIO36, GPIO39: Analog sensors (soil moisture, light, pH) - ADC input pins

⚠️ Pins to AVOID

GPIO0: Boot mode - must be HIGH at startup (pulling LOW during boot = flashing mode)
GPIO2: Built-in LED - can cause boot issues if pulled LOW
GPIO6-11: Connected to internal flash - WILL CRASH your ESP32
GPIO12, GPIO13, GPIO14, GPIO15: JTAG pins - unreliable for general use
GPIO1, GPIO3: Serial TX/RX - used for USB communication

💡 Best Pins for Beginners:

Digital sensors (DHT22, relay): GPIO4, GPIO5, GPIO16, GPIO17
Analog sensors (soil moisture): GPIO32, GPIO33, GPIO34, GPIO35
I2C sensors (BMP280, OLED): GPIO21 (SDA), GPIO22 (SCL)

🔋 Power Pins Reference

3.3V (multiple pins): Output for sensors (max 500mA total)
5V / VIN: Input from USB or external 5V battery (powers the ESP32)
GND (multiple pins): Always connect ground - use multiple pins for stability
EN: Reset pin (pull LOW to reset, HIGH to run - leave floating normally)
VBAT (some boards): Direct battery input (3.6-4.2V for Li-ion)

⚠️ 5V Pin Warning:

The 5V pin is for INPUT only (powering the ESP32 from external 5V). It cannot output 5V to sensors. Most sensors need 3.3V from the 3.3V pin.

🔌 Complete Wiring Examples

1. Soil Moisture Sensor (Analog)

ESP32              → Soil Moisture Sensor
3.3V               → VCC
GND                → GND
GPIO34 (ADC)       → AO (Analog Output)

2. DHT22 Temperature/Humidity

ESP32              → DHT22
3.3V               → VCC (pin 1)
GND                → GND (pin 4)
GPIO16             → DATA (pin 2)
[10kΩ resistor between DATA and 3.3V - REQUIRED!]

3. Relay Module (Water Pump Control)

ESP32              → Relay Module
3.3V               → VCC
GND                → GND
GPIO5              → IN (control pin - active LOW)

4. I2C Sensor (BME280)

ESP32              → BME280
3.3V               → VCC
GND                → GND
GPIO21             → SDA
GPIO22             → SCL

💡 Pro Tip:

Always use a logic level converter ($2-3) when connecting 5V sensors. Alternatively, choose 3.3V compatible sensors when possible. Many agricultural sensors (capacitive soil moisture, DHT22, DS18B20) work at 3.3V.

🎯 Quick Reference - Pin Selection Guide:

✅ Analog sensors: GPIO32, GPIO33, GPIO34, GPIO35, GPIO36, GPIO39

✅ Digital sensors (DHT22, DS18B20): GPIO4, GPIO5, GPIO16, GPIO17

✅ I2C sensors: GPIO21 (SDA), GPIO22 (SCL)

✅ Relays / LEDs: GPIO4, GPIO5, GPIO23, GPIO25, GPIO26, GPIO27

❌ Avoid: GPIO0, GPIO2, GPIO6-11, GPIO12-15

💡 Key Takeaways:

Apply these concepts directly to your farm or project.

Take notes on important details for the quiz.

Use the button below to track your progress.
